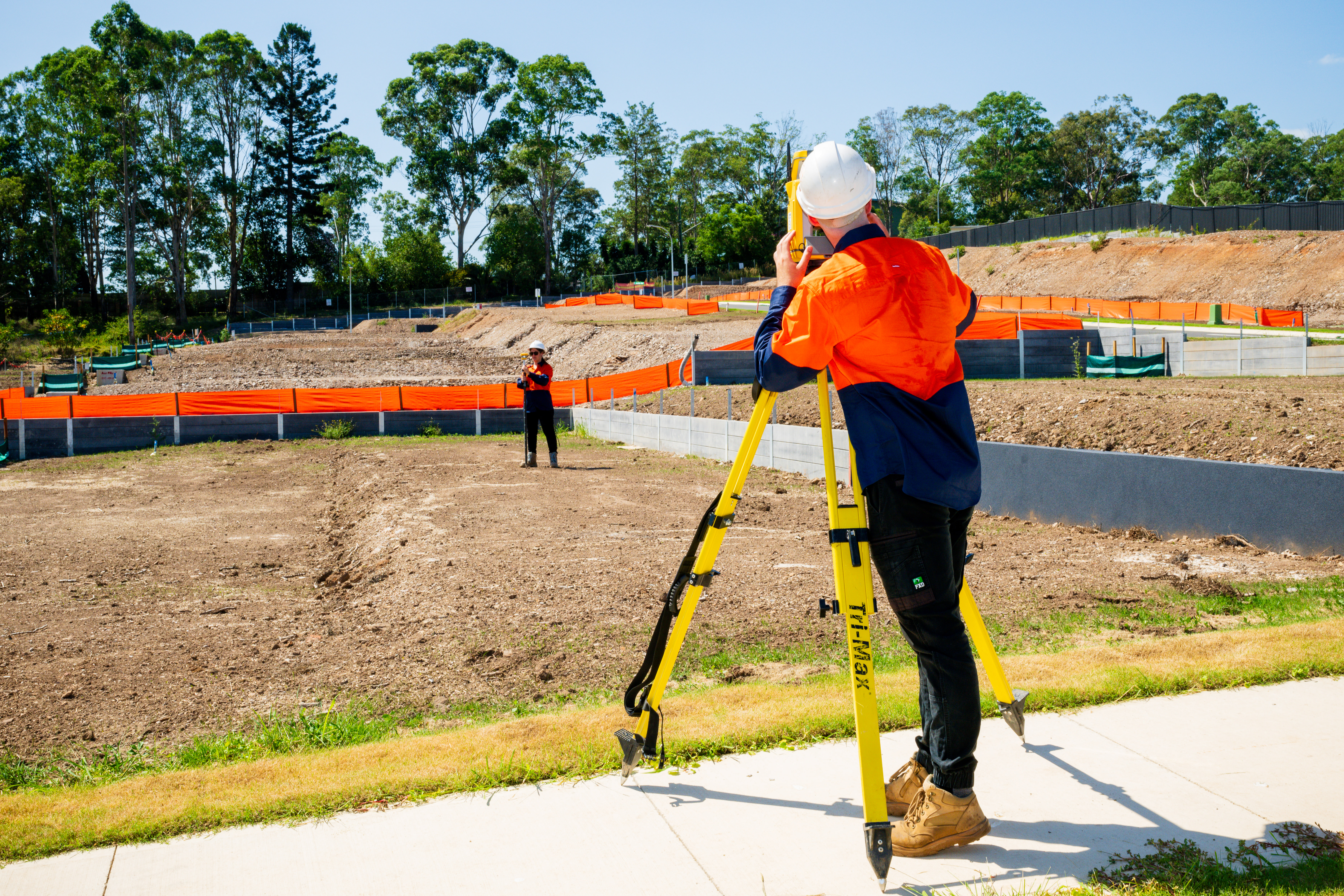

Subdivision Survey in Sydney: Process, Timeline and Costs Explained
A Subdivision Survey in Sydney is what turns one piece of land into two, ten, or fifty separate titles you can actually build on or sell. It is not just a plan on paper. It is the legal and physical definition of where those new lots sit.
Most people come into this thinking it is a quick drawing exercise. It is not. It is a staged process that ties together boundaries, design, council approval, and final registration.
If you get it right early, the rest of the project runs cleaner. If you do not, problems show up later when they are harder to fix.
What a subdivision survey actually involves
A subdivision survey is the process of defining new lot boundaries in a way that meets council rules and can be registered with NSW Land Registry Services.
Before anything is designed, the surveyor confirms what is already there. That includes existing boundaries, easements, and any restrictions tied to the land.
From there, the proposed lots are created. These need to comply with zoning, minimum lot sizes, access requirements, and services.
Most subdivision work sits on top of a boundary survey. If your title is unclear or the fence line is wrong, that needs to be sorted first. We have seen jobs where a boundary was assumed to be correct, only to find it was out by 300 millimetres. That sounds small, but it can shift a building envelope or push a lot out of compliance.
Why subdivision projects in Sydney need proper surveying
Different clients come into this at different stages.
A homeowner in North Sydney might want to split a backyard. A small developer might be planning a duplex or townhouse site. Larger developers could be working through staged releases across multiple lots.
The goal is always the same. You want to move forward without running into issues that stop approvals or delay construction.
We have seen projects held up because a sewer line ran straight through a proposed lot and was not picked up early. Another job lost weeks at DA stage because the driveway width did not meet council requirements. Both of those could have been addressed earlier with the right survey input.
That is where a subdivision survey in North Sydney or anywhere across Sydney becomes more than just a requirement. It becomes a way to avoid rework.
How the subdivision process works
The steps are usually consistent, even though every site is different.
Initial boundary and site investigation
This is where the work starts.
The surveyor reviews title records and existing plans, then surveys the site to confirm boundaries. This is where issues like encroachments or missing survey marks are picked up.
If the boundary is not clear, this stage takes longer. It is better to deal with that now than during construction.
Detail survey and design input
Next is a full site survey.
This captures levels, buildings, trees, and visible services. That data is used by planners and designers to shape the subdivision layout.
On tighter sites, especially in areas like North Sydney, this step matters more. Small changes in levels or access can affect whether a design gets approved.
Subdivision design and council submission
Once the site data is ready, the proposed lots are designed.
The surveyor prepares plans that go into the DA or CDC submission. These plans need to meet council requirements around lot size, access, and services.
If something does not comply, it usually comes back at this stage. You can read more about this process in this step-by-step guide to land subdivision in NSW.
Construction phase and setout
If the project involves roads or services, the surveyor stays involved.
They mark out where everything needs to go on site. This includes boundaries, kerbs, and infrastructure.
Mistakes here can be expensive. Setting out a road or building in the wrong position is not something you want to fix later. Learn more about this stage through construction set out survey services.
Final survey and registration
At the end of the project, the surveyor confirms everything has been built in the right place.
The final plan is then lodged for registration. Once it is registered, the new lots legally exist.
That is the point where they can be sold or built on.
How long subdivision projects take in Sydney
Timeframes depend on the size of the project and how clean the site is from the start.
For a simple two lot split:
- Survey and design might take a few weeks
- Council approval can take a couple of months
- Final registration usually follows after construction or compliance checks
For a subdivision survey multi-lot in Sydney, timelines stretch out.
Larger projects can run over many months or longer if staged. One 16 lot subdivision we worked on involved multiple approval steps and coordination with engineers and council. The survey work itself was only part of the timeline. Most of the time sat in approvals and coordination.
That is where expectations need to be realistic. The survey is not what usually slows things down. It is everything around it.
What a subdivision survey costs
Costs vary depending on the site and the scope of work.
A simple residential subdivision might sit at the lower end. A multi lot development with civil works, staging, and multiple submissions will cost significantly more.
The main factors are:
- Size of the land
- Number of proposed lots
- Site conditions like slope and access
- Existing services and easements
- Level of detail needed for approvals
For example, a flat block with no existing structures is faster to survey and design. A site with retaining walls, drainage, and tight access takes more time.
It is also worth noting that subdivision is not a single survey. You may need boundary work, detail survey, setout, and final registration plans.
Looking at the full project cost gives a more accurate picture than focusing on one part. For more insight into survey pricing, see cost of a boundary survey in Sydney.
Where boundary surveys fit into subdivision
A lot of issues start here.
If the boundary is wrong, everything built from it carries that error forward.
We have seen cases where a fence was assumed to be the boundary, only to find it was offset enough to affect the subdivision layout. Fixing that after plans are drawn or approved is far more expensive than fixing it at the start.
That is why a boundary survey is often the first step before subdivision begins.
Common issues that slow projects down
Delays usually come from things that were not picked up early.
Unregistered easements are a common one. A drainage easement that is not shown clearly can affect where you can place a lot or building.
Services are another. Water, sewer, and electrical lines do not always sit where you expect. If they run through a proposed lot, designs need to change.
We have also seen projects slow down because different consultants were working from different versions of plans. That creates confusion and rework.
Having one clear, accurate survey base keeps everyone aligned. You can also review NSW land registration requirements through NSW Land Registry Services.
Choosing the right surveyor
Subdivision projects involve more than measurements.
You are dealing with council requirements, approvals, and coordination between different consultants.
An experienced surveyor will pick up issues before they get raised in council reviews. That alone can save weeks.
They should also be able to explain what is happening in plain terms. If you cannot understand the process, it becomes harder to make decisions at the right time.
